Product Model

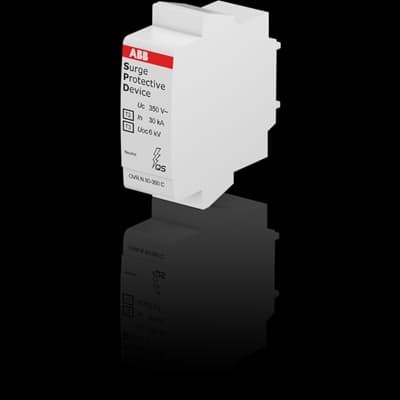

OVR T2 N 80-350 C QS
Selling Points
- 1Nominal 30 kA, Maximum 80 kA for effective lightning protection.
- 2Small dimensions (17.6 mm x 57 mm x 55.6 mm) for easy installation.
- 3Easy replacement during maintenance operations with a pluggable cartridge.
- 4Meets IEC 61643-11 and EN 61643-11 standards for reliability.
- 5Suitable for TT and TN-S low voltage distribution systems, protecting against transient overvoltages.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TT TN-S |
Suitable For | To protect the systems against the transient overvoltage (lightning) | Rated Voltage (Ur) | 230 V AC |
Nominal AC Voltage of the System (Uo) | 230 / 400 V | Voltage Protection Level ( Up) | 1.4 kV (L-N) 1.4 kV (N-PE) 1.4 kV |
Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V | Temporary Overvoltage Test Value (UT) | 1200 V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 30 kA I (max, 8 / 20 µs) 80 kA |
Impulse Current | I (imp, 10 / 350 µs) 6.25 kA | Short Circuit Withstand Icc | 100 A |
Arrester Class | II | Number of Protected Poles | 1 |
Number of Poles | 1 | Number of Conductors | 1 |
Transmission Standard | Optic | Version | Plug-in |
Mounting Type | DIN-Rail | Product Type | QS |
Options Provided | Replacement Cartridge | Preventive Maintenance Feature | No |
Status Indicator | No | Fuse Size | 1 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
Width in Number of Modular Spacings | 1 | Product Net Width | 17.6 mm |
Product Net Height | 57 mm | Product Net Depth / Length | 55.6 mm |
Product Net Weight | 0.12 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
eClass | V11.0 : 27130805 | Object Classification Code | 141EDC |
Manufacturer ID | 2CTB803886R0000 |
Specifications may be subject to change without notice
