ABBSurge protector
Product Model

OVR T2-T3 N 80-275 C QS

Manufacturer

ABB

Category

Surge protector

Product ID

81271

In Stock
Last updated: 2025/4/22
View Specifications

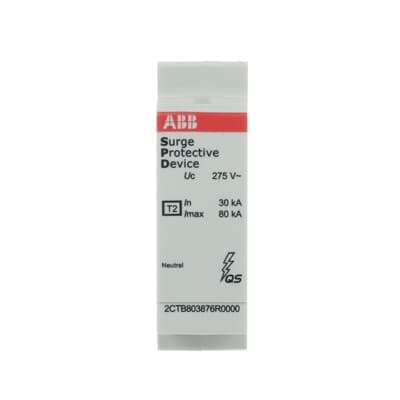

ABB OVR T2-T3 N 80-275 C QS

Selling Points

  • 1Advanced Protection: Offers comprehensive protection against lightning strikes and electrical surges.
  • 2High Discharge Current: Capable of handling up to 80 kA discharge current for robust protection.
  • 3Compact Design: Pluggable cartridge design for easy replacement and minimal space requirements.
  • 4Safety Features: Integrated thermal disconnector and end-of-life indicator ensure safe operation.
  • 5Versatile Installation: Suitable for various low voltage distribution systems with 230/400 V nominal AC voltage.
Product Details
OVR T2-T3 N 80-275 C QS
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Standards
IEC 61643-11 / EN 61643-11
Type of Low Voltage Distribution System
TT TN-S
Suitable For
To protect the systems against the transient overvoltage (lightning)
Rated Voltage (Ur)
230 V AC
Nominal AC Voltage of the System (Uo)
230 / 400 V
Voltage Protection Level ( Up)
1.4 kV (L-N) 1.4 kV (N-PE) 1.4 kV
Maximum Continuous Operating Voltage (Uc)
(L-PE) 275 V
Temporary Overvoltage Test Value (UT)
1200 V
Rated Service Short-Circuit Breaking Capacity (Ics)
100 kA
Discharge Current
Nominal (8 / 20 µs) 30 kA I (max, 8 / 20 µs) 80 kA
Impulse Current
I (imp, 10 / 350 µs) 6.25 kA
Short Circuit Withstand Icc
100 A
Arrester Class
II
Number of Protected Poles
1
Number of Poles
1
Number of Conductors
1
Transmission Standard
Optic
Version
Plug-in
Mounting Type
DIN-Rail
Product Type
QS
Options Provided
Replacement Cartridge
Preventive Maintenance Feature
No
Status Indicator
No
Fuse Size
2 modular spacing
Degree of Protection
IP20
Maximum Operating Altitude Permissible
Without Derating 5000
Width in Number of Modular Spacings
1
Product Net Width
17.6 mm
Product Net Height
57 mm
Product Net Depth / Length
55.6 mm
Product Net Weight
0.12 kg
ETIM 8
EC000941 - Surge protection device for power supply systems
ETIM 9
EC000941 - Surge protection device for power supply systems
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
CN8
85363090
eClass
V11.0 : 27130805
Object Classification Code
141ECC
Manufacturer ID
2CTB803876R0000

Specifications may be subject to change without notice
