Product Model

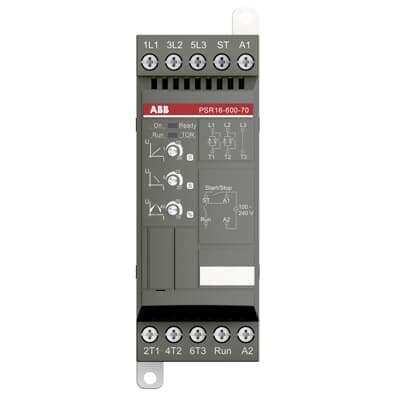

PSR16-600-70
Selling Points
- 1Efficient Motor Control: Reduces mechanical and electrical stresses during motor starts.
- 2Remote Control: Easy installation and operation with remote control functionality.
- 3Built-in Bypass: Saves energy with a built-in bypass for easy installation.
- 4Adjustable Timing: Customize start and stop times from 1 to 20 seconds.
- 5Compact Design: Compact size with dimensions of 140 mm H x 45 mm W x 114 mm D.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 114 mm | Product Net Height | 140 mm |
Product Net Depth / Length | 45 mm | Product Net Weight | 0.4 kg |
Rated Operational Voltage | 208 ... 600 V AC | Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
Rated Control Circuit Voltage (Uc) | 24 V DC | Rated Frequency (f) | 50/60 Hz Main Circuit 50 / 60 Hz |
Rated Operational Power - In-Line Connection (Pe) | (230 V) 4 kW (400 V) 7.5 kW (500 V) 7.5 kW | Rated Operational Current - In-Line Connection (Ie) | 16 A |
Service Factor Percentage | 100 % | Overload Protection | Recommended MS132 10.00 ... 16.00 |
Integrated Electronic Overload | No | Adjustable Rated Motor Current Ie | No |
Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s | Ramp Time | 0 ... 20 second [unit of time] 1 ... 10 second [unit of time] |
Initial Voltage During Start | 40 ... 70 % | Step Down Voltage Special Ramp | 100 ... 60 % |
Current Limit Function | No | Switch for Inside Delta Connection | No |
Run Signal Relay | Yes | By-pass Signal Relay | No |
Fault Signal Relay | No | Overload Signal Relay | No |
Signal Indication Completed Start Ramp (LED) | Green | Signal Indication Ready to Start/Standby ON (LED) | Green |
Signal Indication Running R (LED) | Green | Signal Indication Ramping Up/Down (LED) | Green |
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 | Communication | FiledBusPlug(Optional) |
Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 | Terminal Type | Screw Terminals |
Connecting Capacity Main Circuit | Rigid 1/2 x 0.75 ... 2.5 mm² | Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 2 x 0.75 ... 2.5 mm² Rigid 1/2 x 0.75 ... 2.5 mm² |
Connecting Capacity Supply Circuit | Rigid 1/2 x 0.75 ... 2.5 mm² | Tightening Torque | Control Circuit 1 N·m Main Circuit 1 N·m Supply Circuit 1 N·m |
Product Main Type | PSR16 | Function | Soft start with voltage ramp Soft stop with voltage ramp |
Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 3 Hp (220 ... 240 V AC) Three Phase 5 Hp (440 ... 480 V AC) Three Phase 10 Hp (550 ... 600 V AC) Three Phase 10 Hp | Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
Tightening Torque UL/CSA | Control Circuit 8.9 in·lb Main Circuit 8.9 Supply Circuit 8.9 in·lb | Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +70 °C |
Object Classification Code | Q | ETIM 7 | EC000640 - Soft starter |
ETIM 8 | EC000640 - Soft starter | ETIM 9 | EC000640 - Soft starter |
eClass | V11.0 : 27370907 | UNSPSC | 39121521 |
IDEA Granular Category Code (IGCC) | 4740 >> Soft starter | Manufacturer ID | 1SFA896107R7000 |
Specifications may be subject to change without notice
