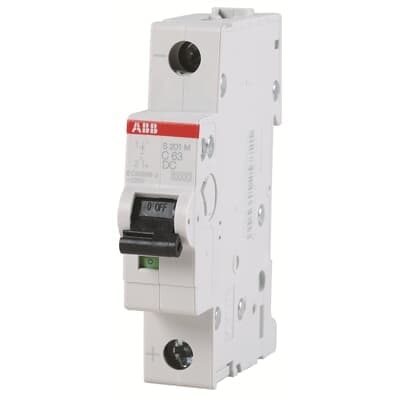

Product Model
S201M-B25DC
Selling Points
- 1Reliable Electrical Protection: The ABB S201M-B25DC ensures safe and reliable electrical protection with its Type B tripping characteristic, tripping between 3 to 5 times the full load current.
- 2DIN Rail Mounting: Easy installation on DIN rail mounting systems, making it convenient for various electrical applications.
- 3High Breaking Capacity: With a breaking capacity of 10kA, this circuit breaker can handle high electrical currents and provide robust protection against electrical shocks and surges.
- 4Comprehensive Warranty: Comes with a one-year warranty, offering customers peace of mind and protection against defects or malfunctions during the warranty period.
- 5Wide Voltage Compatibility: Rated for 220/400V and 240V, making it suitable for a variety of electrical applications and ensuring compatibility with different voltage requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60898-2 GB 10963 IEC/EN 60947-2 GB 14048 | Tripping Characteristic | B |
Rated Voltage (Ur) | 220 V | Rated Operational Voltage | 220 V DC |
Rated Insulation Voltage (Ui) | 440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Input Voltage Type | DC | Rated Current (In) | 25 A |
Rated Short-Circuit Capacity | (230 V) 10 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V DC) 10 kA |
Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA | Frequency (f) | 0...0 Hz |
Rated Frequency (f) | 0-0 Hz | Power Loss | 2.88 W |
Energy Limiting Class | 3 | Number of Protected Poles | 1 |
Number of Poles | 1 | Overvoltage Category | III |
Release Type | B | Options Provided | DC application |
Accessories Available | Yes | Connecting Capacity | Flexible 0 ... 25 mm² Rigid 0 ... 35 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP20 | Pollution Degree | 3 |
Width in Number of Modular Spacings | 1 | Product Net Width | 0.018 m |
Product Net Height | 0.088 m | Product Net Depth / Length | 0.044 m |
Product Net Weight | 0.125 kg | Built-In Depth (t2) | 69 mm |
ETIM 8 | EC000042 - Miniature circuit breaker (MCB) | ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85362010 | eClass | V11.0 : 27141901 |
Object Classification Code | F | Manufacturer ID | 2TAZ112100R0255 |
Specifications may be subject to change without notice
