Product Model

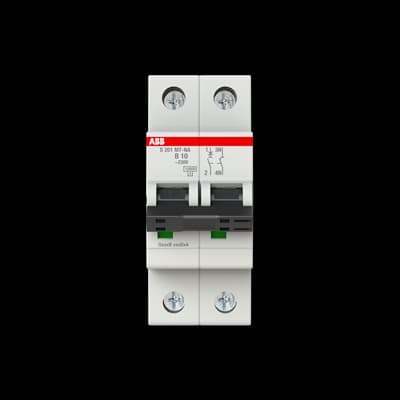

S201MT-B10NA
Selling Points
- 1Compliance with IEC/EN Standards: Meets IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance.
- 2High Short-Circuit Capacity: Rated for 10 kA short-circuit breaking capacity, ensuring reliable protection.
- 3Flexible Installation Options: Compatible with various mounting rails (TH35-15, TH35-7.5) and suitable for DIN rail installation.
- 4Durable Construction: Made from high-quality materials with a durable design, suitable for extreme conditions (-40°C to +70°C).
- 5Patented Terminal Design: Features a failsafe bi-directional cylinder-lift terminal for easy and secure connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235 | Tripping Characteristic | B |
Rated Voltage (Ur) | 440 V | Rated Operational Voltage | acc. to IEC 60898-1 400 V acc. to IEC 60898-1 230 V acc. to IEC 60947-2 230 V |
Operational Voltage | Maximum (Incl. Tolerance) 253 V AC Maximum (Incl. Tolerance) 66 V DC Minimum 12 V AC Minimum 12 V DC | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV | Dielectric Test Voltage | 50/60 Hz-1 min: 2 kV |
Input Voltage Type | AC | Rated Current (In) | 10 A |
Rated Short-Circuit Capacity | 10 kA (230 V) 10 kA (400 V) 10 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 15 kA (230 V) 15 kA (400 V) 15 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | 11.2 kA | Rated Frequency (f) | 50 / 60 Hz |
Power Loss | 4.2 W | Energy Limiting Class | 3 |
Mechanical Endurance | 20000 cycle | Number of Protected Poles | 1 |
Number of Poles | 1+N | Overvoltage Category | III |
Tightening Torque | 2.8 N·m | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
Actuator Marking | I / O | Actuator Material | Insulation Group II, Black, Sealable |
Housing Material | Insulation Group I, RAL 7035 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Mounting Position | any | Recommended Screw Driver | Pozidriv 2 |
Accessories Available | Yes | Connecting Capacity | Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
Installation Size | acc. to DIN 43880 3 | Terminal Type | Screw Terminals |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... 75 °C | Degree of Protection | Enclosure with Cover IP20 |
Pollution Degree | 3 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Width in Number of Modular Spacings | 2.0 | Product Net Width | 35 mm |
Product Net Height | 88 mm | Product Net Depth / Length | 69 mm |
Product Net Weight | 0.25 kg | Pole Net Weight | 0.115 kg |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536 20 10 |
UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers | Object Classification Code | F |
Manufacturer ID | 2CDS271446R0105 |
Specifications may be subject to change without notice
