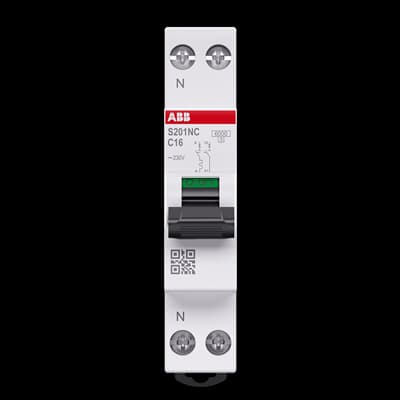

Product Model
S201NC-C16
Selling Points
- 1Advanced Overload and Short Circuit Protection
- 2Compact Design for Space Efficiency
- 3Compliant with IEC/EN 60898-1, IEC/EN 60947-2, UL1077, and CSA 22.2 No. 235 standards
- 4Energy Limiting Class 20000 AC cycle Electrical Endurance
- 5Mountable on DIN Rail for Easy Installation
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 4.2 W | Number of Batteries | 0 |
Product Net Width | 17.8 mm | Product Net Height | 91.6 mm |
Product Net Depth / Length | 75 mm | Dimension Diagram | 9AKK108469A4078 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 8536200000 | Object Classification Code | F |
Manufacturer ID | 2TAZ180110R0164 |
Specifications may be subject to change without notice
