Product Model

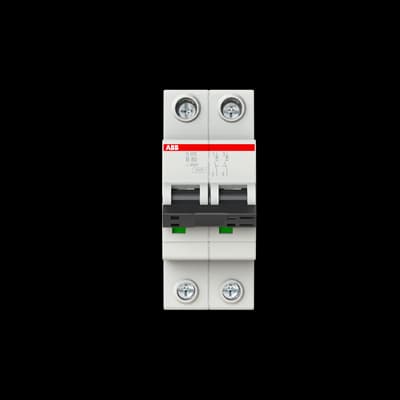

S202-B80
Selling Points
- 1High-performance miniature circuit breaker with 80A current rating.
- 2Meets IEC/EN 60898-1 and IEC/EN 60947-2 standards for reliability.
- 3Clear contact position indication in red/green for easy identification.
- 4Robust insulation with a withstand voltage of 2 kV at 50/60 Hz.
- 5Compact design with a built-in depth of 69 mm for easy mounting on DIN rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60898-1 IEC/EN 60947-2 | Tripping Characteristic | B |
Rated Operational Voltage | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 400 V acc. to IEC 60947-2 400 V AC | Operational Voltage | Maximum (Incl. Tolerance) 440 V AC Maximum (Incl. Tolerance) 110 V DC Minimum 12 V AC Minimum 12 V DC |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
Dielectric Test Voltage | 50/60 Hz-1 min: 2 kV | Input Voltage Type | AC |
Rated Current (In) | 80 A | Rated Short-Circuit Capacity | (AC) 6 kA (DC) 6 kA (230 V AC) 6 kA (400 V AC) 6 kA (400 V) 6 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 10 kA (400 V AC) 6 kA (400 V) 6 kA | Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA (400 V) 20 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 6 kA | Rated Frequency (f) | 50 / 60 Hz |
Power Loss | 16.2 W at Rated Operating Conditions per Pole 8.1 W | Power Supply Connection | Arbitrary |
Contact Position Indication | ON / OFF | Energy Limiting Class | 3 |
Electrical Endurance | 10000 AC cycle | Mechanical Endurance | 20000 cycle |
Number of Protected Poles | 2 | Number of Poles | 2 |
Overvoltage Category | III | Tightening Torque | 3 N·m |
Actuator Type | Toggle | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
Actuator Marking | I / O | Actuator Material | Insulation Group II, Black, Sealable |
Housing Material | Insulation Group I, RAL 7035 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Mounting Position | any | Recommended Screw Driver | Pozidriv 2 |
Accessories Available | Yes | Connecting Capacity | Busbar 16 / 16 mm² Conductor 2.5 ... 50 mm² Flexible 4 ... 35 mm² Rigid 2.5 ... 50 mm² Stranded 2.5 ... 50 mm² |
Installation Size | acc. to DIN 43880 1 | Terminal Type | Screw Terminals |
Ambient Air Temperature | Operation -25 ... +55 °C Storage -40 ... +70 °C | Reference Ambient Air Temperature | 30 °C |
Degree of Protection | IP20 IP40 Enclosure with Cover IP40 | Pollution Degree | 3 |
Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Width in Number of Modular Spacings | 2.0 |
Product Net Width | 35 mm | Product Net Height | 88 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 0.28 kg |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536 20 90 |
UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers | Object Classification Code | F |
Manufacturer ID | 2CDS252001R0805 |
Specifications may be subject to change without notice
