Product Model

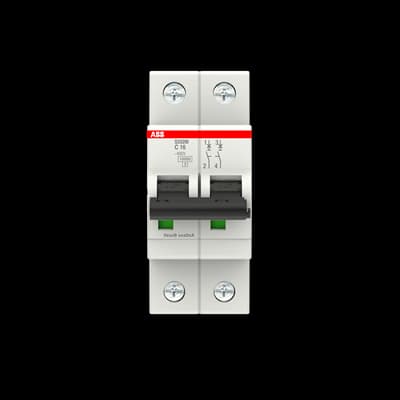

S202M-C16 Bulk
Selling Points
- 1Meets IEC/EN 60898-1 and IEC/EN 60947-2 for global compatibility.
- 2Features a 10 kA breaking capacity at 440V AC, ensuring reliable short-circuit protection.
- 3Equipped with thermal and electromechanical tripping mechanisms for precise overload and short-circuit detection.
- 4Bottom-fitting auxiliary contact reduces installation space by up to 50%.
- 5Built with insulation group II materials, ensuring high mechanical endurance and resistance to environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60898-1 CSA 22.2 No. 235 IEC/EN 60947-2 UL 1077 | Tripping Characteristic | C |
Rated Operational Voltage | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 400 V acc. to IEC 60947-2 440 V AC | Operational Voltage | Maximum (Incl. Tolerance) 125 V DC Maximum (Incl. Tolerance) 440 V AC |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
Input Voltage Type | AC/DC | Rated Current (In) | 16 A |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V) 25 kA (400 V) 25 kA | Rated Frequency (f) | 50 / 60 Hz |
Power Supply Connection | Arbitrary | Energy Limiting Class | 3 |
Number of Protected Poles | 2 | Number of Poles | 2 |
Overvoltage Category | III | Tightening Torque | 2.8 N·m |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Actuator Marking | I / O |
Options Provided | Unpacked | Mounting Position | any |
Accessories Available | Yes | Connecting Capacity | Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ... +55 °C |
Degree of Protection | IP20 IP40 | Pollution Degree | 3 |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz | Environmental Information | 2CDK400030D0201 |
Tightening Torque UL/CSA | 18 in·lb | Width in Number of Modular Spacings | 2.0 |
Product Net Width | 35 mm | Product Net Height | 88 mm |
Product Net Depth / Length | 69 mm | Product Net Weight | 0.23 kg |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536 20 10 |
UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers | Object Classification Code | F |
Manufacturer ID | 2CDS272001U0164 |
