Product Model

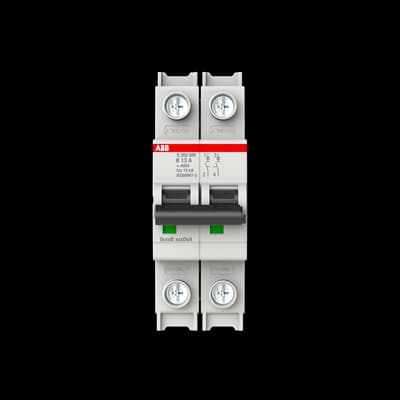

S202MR-K13
Selling Points
- 1High Inrush Current Protection: The "K" trip characteristic ensures instantaneous tripping between 8 and 12 times rated current, maximizing protection during system start-up.
- 2Compact Design: DIN rail mounted for easy installation, making it perfect for modular electrical systems.
- 3Wide Voltage Range: Compatible with 277VAC and 480VAC, offering versatility in various electrical applications.
- 4UL 1077 Certification: Meets UL standards for safety and reliability, ensuring compliance with industry regulations.
- 5Durable Construction: Withstood up to 20,000 mechanical operations, providing long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | CSA 22.2 No. 235 IEC/EN 60947-2 UL 1077 | Tripping Characteristic | K |
Rated Operational Voltage | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 400 V acc. to IEC 60947-2 400 V AC | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV | Input Voltage Type | AC |
Rated Current (In) | 13 A | Rated Short-Circuit Capacity | (230 V AC) 10 kA (400 V AC) 10 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 10 kA (400 V AC) 15 kA (400 V) 6 kA | Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA (400 V) 10 kA |
Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 11.2 kA | Rated Frequency (f) | 50 / 60 Hz |
Energy Limiting Class | 3 | Number of Protected Poles | 2 |
Number of Poles | 2 | Overvoltage Category | III |
Accessories Available | Yes | Connecting Capacity | Flexible with Ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
Terminal Type | Double Clamp | Ambient Air Temperature | Operation -25 ... +55 °C |
Degree of Protection | IP20 | Pollution Degree | 3 |
Interrupting Rating acc. to UL1077 | (480Y / 277 V AC) 10 kA | Width in Number of Modular Spacings | 2.0 |
Product Net Width | 35 mm | Product Net Height | 100 mm |
Product Net Depth / Length | 71 mm | Product Net Weight | 0.28 kg |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536 20 10 |
UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
IDEA Granular Category Code (IGCC) | 4899 >> Miniature circuit breaker (MCB) screw-in model | Manufacturer ID | 2CDS272437R0447 |
Specifications may be subject to change without notice
