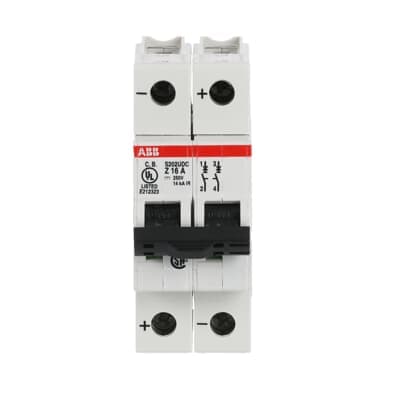

Product Model
S202UDC-Z16
Selling Points
- 1Compliant with UL489: Meets stringent safety standards for commercial and industrial applications.
- 2Dual Tripping Mechanisms: Offers both delayed thermal and electromechanical tripping for enhanced protection.
- 3Compact Design: Suitable for DIN rail mounting, ideal for space-efficient installations.
- 4High Interrupting Rating: Provides 14 kA interrupting capacity for reliable short-circuit protection.
- 5Wide Operating Temperature Range: Operates between -25°C to +55°C, ensuring flexibility in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | UL 489 | Tripping Characteristic | Z |
Rated Operational Voltage | 125 V DC acc. to IEC 60898-1 250 V acc. to IEC 60947-2 125 V | Rated Insulation Voltage (Ui) | 440 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV | Primary Rated Impulse Withstand Voltage | 4 kV |
Input Voltage Type | DC | Rated Current (In) | 16 A |
Rated Short-Circuit Capacity | (230 V AC) 14 kA (230 V) 14 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 14 kA (230 V) 14 kA |
Rated Conditional Short-Circuit Current (Inc) | (230 V) 14 kA | Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 14 kA |
Rated Frequency (f) | DC | Power Loss | 5.6 W at Rated Operating Conditions per Pole 2.8 W |
Power Supply Connection | Please Note Polarity of Device | Contact Position Indication | Red ON / Green OFF |
Energy Limiting Class | 3 | Mechanical Endurance | 20000 cycle |
Number of Protected Poles | 2 | Number of Poles | 2 |
Overvoltage Category | III | Tightening Torque | 2.8 N·m |
Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Actuator Marking | I / O |
Actuator Material | Insulation Group II, Black, Sealable | Housing Material | Insulation Group I, RAL 7035 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Mounting Position | any |
Recommended Screw Driver | Pozidriv 2 | Accessories Available | Yes |
Remarks | Please note polarity of device | Connecting Capacity | Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 16 mm² Rigid 0.75 ... 25 mm² Stranded 0.75 ... 25 mm² |
Installation Size | acc. to DIN 43880 2 | Terminal Type | Double Clamp |
Ambient Air Temperature | Operation -25 ... +55 °C Storage -40 ... +70 °C | Degree of Protection | IP20 Enclosure with Cover IP40 |
Pollution Degree | 3 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 11 ms |
Environmental Information | 9AKK107680A6947 | Maximum Operating Voltage UL/CSA | 250 V DC |
Interrupting Rating acc. to UL1077 | (125 V DC) 14 kA | Interrupting Rating acc. to UL489 | (125 V DC) 14 kA (250 V DC) 14 kA |
Connecting Capacity UL/CSA | Busbar 18-8 AWG Conductor 18-4 AWG | Tightening Torque UL/CSA | 25 in·lb |
Width in Number of Modular Spacings | 2.0 | Product Net Width | 35 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
Product Net Weight | 0.3 kg | Pole Net Weight | 0.14 kg |
Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536 20 10 |
UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
IDEA Granular Category Code (IGCC) | 4899 >> Miniature circuit breaker (MCB) screw-in model | Object Classification Code | F |
Manufacturer ID | 2CDS272517R0468 |
Specifications may be subject to change without notice
