Product Model

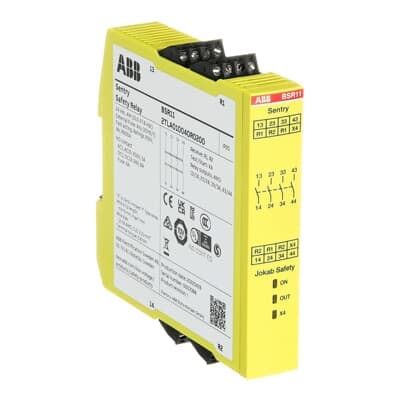

Sentry BSR11
Selling Points
- 1Reliable Emergency Stop Monitoring: Safely monitor emergency stops directly in the voltage supply circuit.
- 2Expansion Relay Capability: Increase the number of safe outputs with the BSR11 as an expansion relay for safety PLCs.
- 3High Output Current Capacity: Supports up to 6A, eliminating the need for intermediary contactors.
- 4Comprehensive Safety Certifications: Meets international standards including cULus, TÜV SÜD, CE, CCC, and RCM.
- 5Versatile Configuration Options: Features adjustable time settings and multi-reset functionality for enhanced safety management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 120 mm |
Product Net Depth / Length | 120 mm | Product Net Weight | 0.19 kg |
Function | Expansion relay - No monitoring of two channel fault | Sub-Function | Start/test input |
Timer Relay Type | No Time Delay | Rated Control Supply Voltage (Us) | 24 V DC |
Rated Operational Current AC-15 (Ie) | 5 A | Rated Operational Current DC-13 (Ie) | 6 A |
Degree of Protection | IP20 | Connecting Capacity | Crimped Pin 1x0.2...3.3 mm² Crimped Pin 2x0.2...1.5 mm² Flexible with Ferrule 1x0.2...3.3 mm² Flexible with Ferrule 2x0.2...1.5 mm² Solid 1x0.2...3.3 mm² Solid 2x0.2...1.5 mm² |
Tightening Torque | 0.7 N·m | Wire Stripping Length | 6.5 mm |
Recommended Screw Driver | M3.5 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | IS0 13849 | Connecting Capacity UL/CSA | Crimped Pin 1x 24-12 AWG Crimped Pin 2x 24-16 AWG Flexible with Ferrule 1x 24-12 AWG Flexible with Ferrule 2x 24-16 AWG Solid 1x 24-12 AWG Solid 2x 24-16 AWG |
Ambient Air Temperature | Operation -25 ... +65 °C Storage -40 ... +70 °C | Object Classification Code | K |
ETIM 7 | EC001449 - Device for monitoring of safety-related circuits | ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
ETIM 9 | EC001449 - Device for monitoring of safety-related circuits | eClass | V11.0 : 27371819 |
UNSPSC | 39122331 | E-Number (Finland) | 2712520 |
E-Number (Sweden) | 3860817 | Manufacturer ID | 2TLA010040R0200 |
Specifications may be subject to change without notice
