Product Model

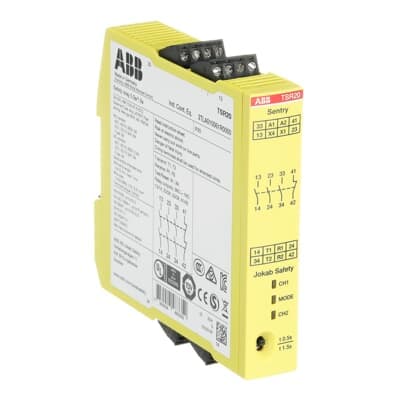

Sentry TSR20
Selling Points
- 1Advanced safety monitoring with delayed relay outputs.
- 23NO-1NC contact form for reliable operation.
- 324VDC power supply for efficient operation.
- 4Configurable models with display for faster troubleshooting.
- 5Suitable for monitoring safety devices with contacts and OSSD outputs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Depth / Length | 120 mm | Product Net Height | 120 mm |
Product Net Width | 22.5 mm | Product Net Weight | 0.207 kg |
Number of Outputs | Failsafe, Delayed Contacts 4 | Rated Control Supply Voltage (Us) | 24 V DC |
Time Range | 0.5 and 1.5 seconds | Ambient Air Temperature | Operation -25 ... +65 °C Storage -40 ... +70 °C |
Degree of Protection | IP20 | Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 10% ... 90%; no icing; occasional condensation |
eClass | V11.0 : 27371819 | ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
ETIM 8 | EC001449 - Device for monitoring of safety-related circuits | ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
IDEA Granular Category Code (IGCC) | 5367 >> Control relay | UNSPSC | 39122331 |
Object Classification Code | K | E-Number (Finland) | 2712529 |
E-Number (Sweden) | 3860826 | Manufacturer ID | 2TLA010061R0000 |
Specifications may be subject to change without notice
