Product Model

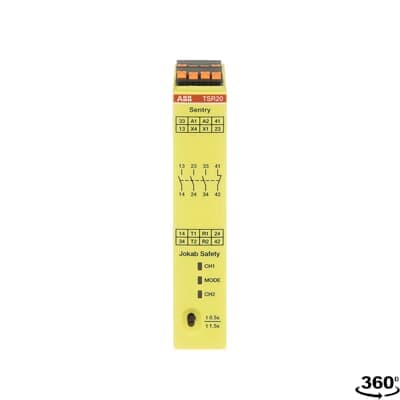

Sentry TSR20P
Selling Points
- 1Advanced time delay function with ±1% accuracy and adjustable time setting range from 0-999 s.
- 2Multi-reset capability allowing up to 10 safety relays connected to one reset light-button.
- 3High output current capacity of up to 6 A, saving the use of an intermediary contactor.
- 4Reliable monitoring of safety devices with contacts and OSSD outputs, suitable for applications up to PLe / SIL3.
- 5Versatile terminal options including push-in and screw terminals, with detachable terminals available as accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 120 mm |
Product Net Depth / Length | 120 mm | Product Net Weight | 0.207 kg |
Function | Safety relay for monitoring of safety devices | Sub-Function | Start/test input, Auto reset only, Time delay selectable by switch |
Timer Relay Type | OFF-Delay | Time Range | 0.5 and 1.5 seconds |
Rated Control Supply Voltage (Us) | 24 V DC | Rated Operational Current AC-15 (Ie) | 5 A |
Rated Operational Current DC-13 (Ie) | 6 A | Degree of Protection | IP20 |
Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² Crimped Pin 2x0.25...1.5 mm² Flexible with Ferrule 1x0.2...2.5 mm² Flexible with Ferrule 2x0.25...1.5 mm² Solid 1x0.2...2.5 mm² Solid 2x0.25...1.5 mm² | Wire Stripping Length | 6.5 mm |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | IS0 13849 |
Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG Flexible with Ferrule 1x 24-14 AWG Solid 1x 24-14 AWG | Ambient Air Temperature | Operation -25 ... +65 °C Storage -40 ... +70 °C |
Object Classification Code | K | ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
ETIM 8 | EC001449 - Device for monitoring of safety-related circuits | ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
eClass | V11.0 : 27371819 | UNSPSC | 39122331 |
E-Number (Finland) | 2712904 | E-Number (Sweden) | 3861417 |
Manufacturer ID | 2TLA010061R0001 |
Specifications may be subject to change without notice
