Product Model

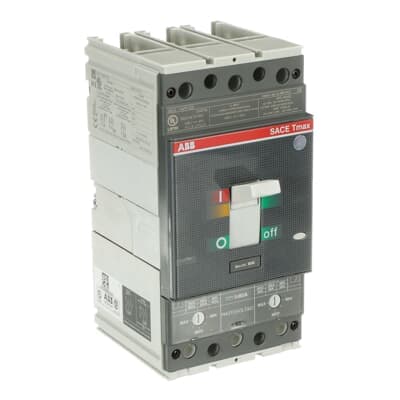

T4N/PV 200 UL TMA 80-800 3p F F 1000V DC
Selling Points
- 1Operates up to 1500VDC: Ensures reliable operation in high-voltage environments.
- 2Compliant with IEC Standards: Meets stringent safety and performance standards for electrical equipment.
- 3Anti-Condensation Protection: Prevents electronic overcurrent releases from moisture damage.
- 4High Mechanical Life: Withstands up to 20,000 operations, ensuring long-term reliability.
- 5Versatile Connection Options: Available with standard terminals and jumper kits for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK10103A1057 9AKK108467A6707 | Product Net Width | 105 mm |
Product Net Height | 205 mm | Product Net Depth / Length | 103.5 mm |
Product Net Weight | 2.35 kg | Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Version | F | Current Type | DC |
Number of Poles | 3 | Rated Operational Voltage | 1000 V DC |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V DC) 7.5 kA | Rated Uninterrupted Current (Iu) | 200 A |
Release | TMA | Short-Circuit Performance Level | N |
Standards | UL | Sub-type | T4 |
Interrupting Rating acc. to UL489 | (1000 V DC) 7.5 kA | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA070463R1 |
Specifications may be subject to change without notice
