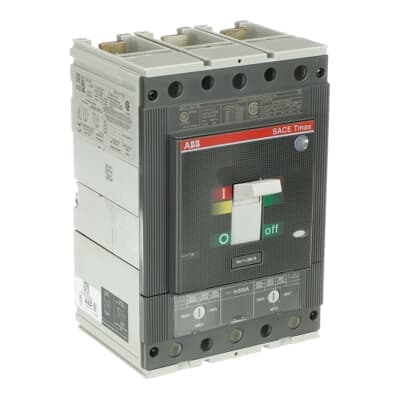

Product Model
T5H400 UL/CSA TMA 300-1500..3000 3p F F
Selling Points
- 1UL/CSA Certified: Meets stringent safety standards for reliable operation.
- 2High Performance: Designed for 300-1500..3000 A applications with robust short-circuit breaking capacity.
- 3Thermomagnetic Release: Ensures safe and efficient operation under various conditions.
- 4Fixed Front Terminals: Easy installation and maintenance with secure terminal connections.
- 53-Pole Configuration: Suitable for three-phase electrical systems, enhancing system reliability and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK10103A1056 9AKK108467A6707 | Product Net Width | 140 mm |
Product Net Height | 205 mm | Product Net Depth / Length | 103.5 mm |
Product Net Weight | 4.8 kg | Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Suitable For | T5 | Suitable for Product Class | Moulded Case Circuit Breakers |
Version | F | Mechanical Durability | 20000 cycle 120 cycles per hour |
Number of Poles | 3 | Power Loss | at Rated Operating Conditions per Pole 12.3 W |
Rated Current (In) | 300 A | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Voltage | 600 V AC 600 V DC |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 V AC) 150 kA (480 V AC) 65 kA (600 V AC) 35 kA (500 V DC) 2 Poles in Series 50 kA (600 V DC) 3 Poles in Series 35 kA | Rated Uninterrupted Current (Iu) | 400 A |
Release | TMA | Release Type | TM |
Short-Circuit Performance Level | H | Standards | UL |
Sub-type | T5 | Terminal Connection Type | Fixed Circuit-Breakers Front |
Test Voltage Max (Utest) | 3500 V | Interrupting Rating acc. to UL489 | (240 V AC) 150 kA (480 V AC) 65 kA (600 V AC) 35 kA (500 V DC) 2 Poles in Series 50 kA (600 V DC) 3 Poles in Series 35 kA |
ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers | UNSPSC | 39121616 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
Manufacturer ID | 1SDA060638R1 |
Specifications may be subject to change without notice
