Product Model

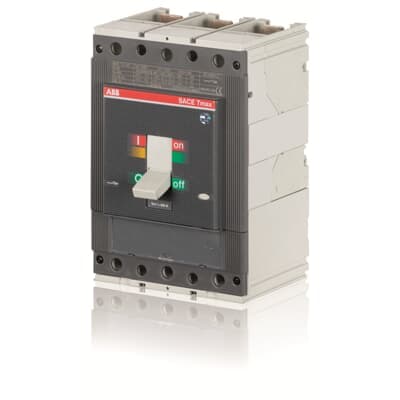

T5N-D/PV 400 MCS UL 3p F 1000V DC
Selling Points
- 1Meets North American safety standards for photovoltaic systems.
- 2Supports up to 400A, ensuring reliable operation in demanding applications.
- 3Compact and durable, suitable for various photovoltaic installations.
- 4Includes mandatory jumpers for safe and accurate pole connections.
- 5Available in multiple configurations to fit different system requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK10103A1056 9AKK108467A6707 | Product Net Width | 140 mm |
Product Net Height | 205 mm | Product Net Depth / Length | 103.5 mm |
Product Net Weight | 3.25 kg | Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker | Product Type | Switch Disconnector |
Suitable For | T5 | Version | F |
Current Type | DC | Number of Poles | 3P |
Rated Current (In) | 400 A | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V DC | Rated Operational Voltage | 1000 V DC |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA | Rated Uninterrupted Current (Iu) | 400 A |
Rated Voltage (Ur) | 1000 V DC | Short-Circuit Performance Level | N |
Standards | UL | Sub-type | T5 |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27371403 |
Manufacturer ID | 1SDA070471R1 |
Specifications may be subject to change without notice
