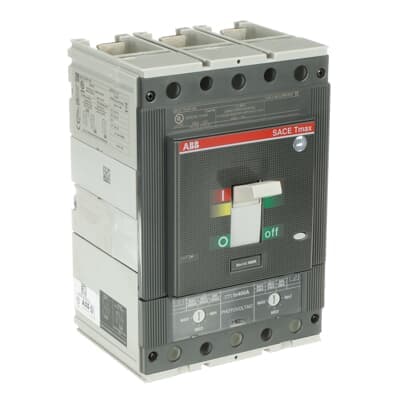

Product Model
T5N/PV 400 UL TMA 400-4000 3p FF 1000VDC
Selling Points
- 1High Durability: Designed for 20,000 mechanical cycles and 120 cycles per hour.
- 2Thermal Magnetic Trip: Ensures reliable and efficient short-circuit protection.
- 3Wide Voltage Range: Rated for 1000V DC and 690V AC.
- 4Heavy-Duty Capability: Handles currents up to 4000A with a 400A rating.
- 5UL/CSA Certification: Meets stringent safety standards for UL and CSA compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK10103A1056 9AKK108467A6707 | Product Net Width | 140 mm |
Product Net Height | 205 mm | Product Net Depth / Length | 103.5 mm |
Product Net Weight | 4.8 kg | Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Suitable For | T5 | Suitable for Product Class | Moulded Case Circuit Breakers |
Version | F | Mechanical Durability | 20000 cycle 120 cycles per hour |
Number of Poles | 3 | Rated Current (In) | 400 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 1150 V |
Rated Operational Voltage | 1000 V DC | Rated Uninterrupted Current (Iu) | 400 A |
Release | TMA | Release Type | TM |
Short-Circuit Performance Level | N | Standards | UL |
Sub-type | T5 | Terminal Connection Type | Fixed Circuit-Breakers Front |
Interrupting Rating acc. to UL489 | (240 V AC) 65 kA (480 V AC) 25 kA (600 V AC) 18 kA (500 V DC) 2 Poles in Series 25 kA (600 V DC) 3 Poles in Series 16 kA | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA070472R1 |
Specifications may be subject to change without notice
