Product Model

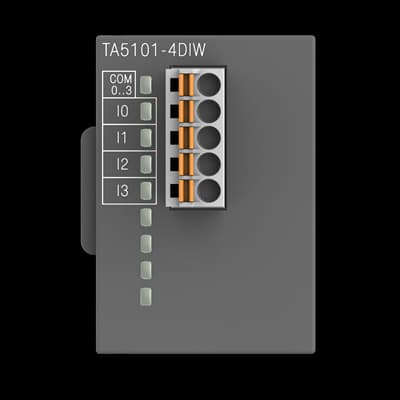

TA5101-4DIW
Selling Points
- 1Ensures safe and reliable operation by isolating the input group from the rest of the module.
- 2Operates from -20°C to +60°C, with derating to 75% at temperatures between 60°C and 70°C.
- 3Supports typical input currents of 5 mA per channel at 24V DC and 1 mA at 5V.
- 4Mounts horizontally or vertically with a compact footprint suitable for DIN rail mounting.
- 5Equipped with spring/cable front terminals and LED indicators for easy signal monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ABB Type Designation | TA5101-4DIW | CN8 | 85389091 |
Country of Origin | China (CN) Germany (DE) | Customs Tariff Number | 85389091 |
EAN | 4053546054118 | ETIM 7 | EC001419 - PLC digital I/O-module |
ETIM 8 | EC001419 - PLC digital I/O-module | ETIM 9 | EC001419 - PLC digital I/O-module |
Frame Size | Undefined | Gross Weight | 0.032 kg |
Invoice Description | Digital input option board. 4 DI: 24VDC. Spring terminals included (TA5101-4DIW) | Made To Order | No |
Maximum Order Quantity | 0 piece | Minimum Order Quantity | 1 piece |
Order Multiple | 1 piece | Package Level 1 Depth / Length | 70 mm |
Package Level 1 EAN | 4053546054118 | Package Level 1 Height | 50 mm |
Package Level 1 Units | 1 carton | Package Level 1 Width | 40 mm |
Product Main Type | TA5101 | Product Name | Distributed Automation PLCs |
Product Net Depth / Length | 54.2 mm | Product Net Height | 42 mm |
Product Net Weight | 0.014 kg | Product Net Width | 28.5 mm |
Product Type | PLC-AC500-eCo | Quote Only | No |
Selling Unit of Measure | piece | Short Description | TA5101-4DIW: Digital input option board |
Stocked At (Warehouses) | Menden, Germany Beijing, China Beijing, China Singapore, Singapore | UNSPSC | 32151705 |
WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | 27-24-22-92 | Manufacturer ID | 1SAP187000R0201 |
Specifications may be subject to change without notice
