Product Model

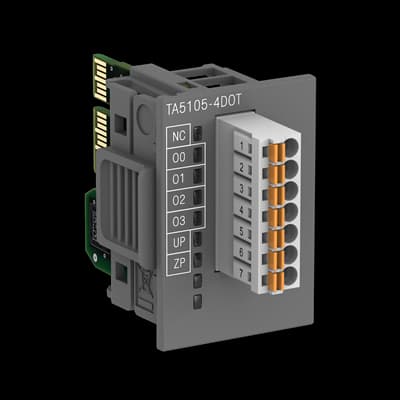

TA5105-4DOT
Selling Points
- 1The TA5105-4DOT features four transistor outputs, each capable of handling 24VDC and up to 0.5A.
- 2Equipped with spring terminals for easy and secure connections.
- 3Provides galvanic isolation between the output group and the rest of the module for enhanced safety.
- 4Operates within a wide temperature range of -20°C to +60°C, ensuring reliability in various environments.
- 5Designed for DIN rail mounting, making it compact and easy to integrate into industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.016 kg | Product Net Depth / Length | 54.2 mm |
Product Net Height | 42 mm | Product Net Width | 28.5 mm |
Gross Weight | 0.034 kg | Package Level 1 Depth / Length | 70 mm |
Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
Package Level 1 Units | 1 carton | Function | 4 DO: 24VDC 0.5A. Spring terminals included |
Number of Digital Outputs | 4 | Number of Digital Configurable I/Os | 0 |
Output | Transistor | Output Voltage Type | DC |
Output Current | 0.5 A | Output Voltage Maximum | 20.4 ... 28.8 V |
Degree of Protection | IP20 | Supply Voltage | 20.4 ⦠28.8 V DC |
Product Main Type | TA5105 | Product Name | Distributed Automation PLCs |
eClass | 27-24-22-92 | ETIM 8 | EC001419 - PLC digital I/O-module |
UNSPSC | 32151705 | WEEE B2C / B2B | Business To Business |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187000R0002 |
Specifications may be subject to change without notice
