Product Model

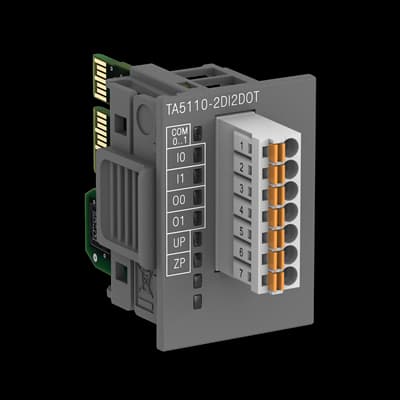

TA5110-2DI2DOT
Selling Points
- 1Ensures safe and reliable operation by isolating the input and output groups from the rest of the module.
- 2Equipped with 2 digital inputs (24VDC) and 2 transistor outputs (24VDC, 0.5A) for versatile I/O extension.
- 3Convenient spring terminals for easy connection and disconnection of cables.
- 4Dimensions are 143mm in depth, making it suitable for various industrial applications.
- 5Operates within a wide temperature range, ensuring reliability in diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.015 kg | Product Net Depth / Length | 54.2 mm |
Product Net Height | 42 mm | Product Net Width | 28.5 mm |
Gross Weight | 0.034 kg | Package Level 1 Depth / Length | 70 mm |
Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
Package Level 1 Units | 1 carton | Function | 2 DI: 24VDC. 2 DO: 24VDC 0.5A. Spring terminals included |
Number of Digital Inputs | 2 | Number of Digital Outputs | 2 |
Number of Digital Configurable I/Os | 0 | Input Voltage Type | DC |
Input Current | 5 mA | Maximum Input Voltage | 0 ... 30 V |
Delay Time (<span style="font-size:9.0pt;font-family:'Arial',sans-serif;color:#333333;background:white;">τ</span>) | 4 ⦠8 ms | Output | Transistor |
Output Voltage Type | DC | Output Current | 0.5 A |
Output Voltage Maximum | 20.4 ... 28.8 V | Degree of Protection | IP20 |
Supply Voltage | 20.4 ⦠28.8 V DC | Product Main Type | TA5110 |
Product Name | Distributed Automation PLCs | eClass | 27-24-22-92 |
ETIM 8 | EC001419 - PLC digital I/O-module | UNSPSC | 32151705 |
WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SAP187000R0003 |
Specifications may be subject to change without notice
