Product Model

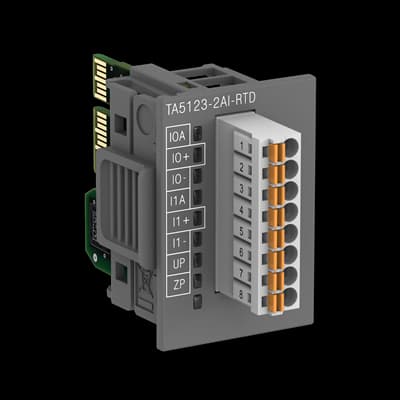

TA5123-2AI-RTD
Selling Points
- 1High Precision: 16-bit resolution for accurate analog input.
- 2RTD Compatibility: Supports 2 RTD (Resistance Temperature Detector) inputs.
- 3Spring Terminals Included: Convenient spring terminals for easy wiring.
- 4Wide Temperature Range: Operates in a wide temperature range from -20°C to +60°C.
- 5Durable Design: Meets IP20 protection standards and is vibration-resistant.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.018 kg | Product Net Depth / Length | 54.2 mm |
Product Net Height | 42 mm | Product Net Width | 28.5 mm |
Gross Weight | 0.033 kg | Package Level 1 Depth / Length | 70 mm |
Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
Package Level 1 Units | 1 carton | Function | 2 AI: RTD. 16 Bit. Spring terminals included |
Number of Analog Configurable I/Os | 0 | Analog Inputs | 2 |
Input Signal | RTD | Resolution | Analog Input 16 bit |
Degree of Protection | Housing IP20 | Product Main Type | TA5123 |
Product Name | Distributed Automation PLCs | eClass | 27-24-22-92 |
ETIM 8 | EC001420 - PLC analogue I/O-module | UNSPSC | 32151705 |
SCIP | 78f8c23b-7ec7-48b1-ab7c-c199e5d05653 Germany (DE) | WEEE B2C / B2B | Business To Business |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187100R0002 |
Specifications may be subject to change without notice
