Product Model
TA5211-TSCL-B
Selling Points
- 1Designed for industrial use with solid and flexible copper conductors.

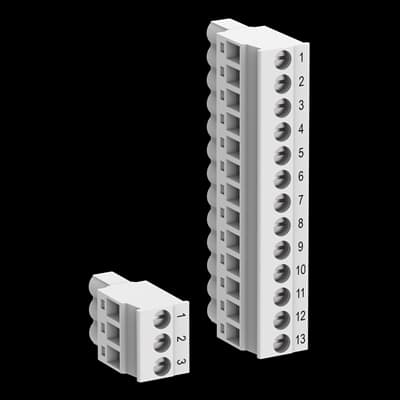

- 2Includes removable 3-pin terminal block for power supply and 13-pin terminal block for I/O connectors.
- 3Screw front and cable side 5.00 mm pitch for straightforward setup.
- 4Fastening torque of 0.5 Nm ensures secure connections.
- 5Dimensions of 15 mm x 12.4 mm x 26.05 mm for efficient use in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.027 kg | Product Net Depth / Length | 40 mm |
Product Net Height | 165 mm | Product Net Width | 100 mm |
Gross Weight | 0.034 kg | Package Level 1 Depth / Length | 40 mm |
Package Level 1 Height | 250 mm | Package Level 1 Width | 150 mm |
Package Level 1 Units | 1 carton | Function | for PM5012. screw front / cable side. 1 Power supply and 1 I/O connector |
Degree of Protection | IP20 | Accessory Type | Electrical: Plug |
Product Main Type | TA5211 | Product Name | Distributed Automation I/Os |
eClass | 27-24-22-92 | ETIM 8 | EC002584 - Accessories/spare parts for controls |
UNSPSC | 32151703 | WEEE B2C / B2B | Business To Business |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187400R0001 |
Specifications may be subject to change without notice
