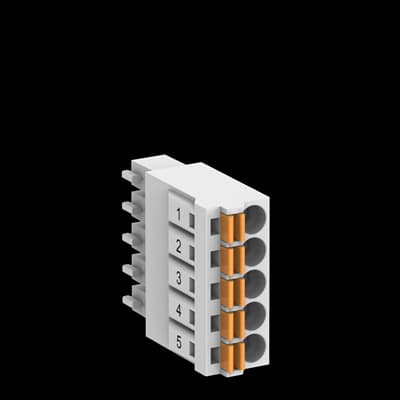

Product Model
TA5220-SPF5
Selling Points
- 1Ideal for AC500-eCo option boards with 5 poles.
- 2Spring terminal design for secure and reliable connections.
- 3Compatible with various conductor cross sections (0.2 mm² to 1.5 mm²).
- 4Removable and reusable, ensuring easy maintenance and replacement.
- 5Compact dimensions (18.2 mm x 7.7 mm x 22.9 mm) for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.015 kg | Product Net Depth / Length | 40 mm |
Product Net Height | 165 mm | Product Net Width | 100 mm |
Gross Weight | 0.023 kg | Package Level 1 Depth / Length | 40 mm |
Package Level 1 Height | 250 mm | Package Level 1 Width | 150 mm |
Package Level 1 Units | 1 carton | Function | Spare part for option board. 5-pole. Spring terminal. 6 pieces |
Degree of Protection | IP20 | Accessory Type | Electrical: Plug |
Product Main Type | TA5220 | Product Name | Distributed Automation I/Os |
eClass | 27-24-22-92 | ETIM 8 | EC002584 - Accessories/spare parts for controls |
UNSPSC | 32151703 | WEEE B2C / B2B | Business To Business |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187400R0012 |
Specifications may be subject to change without notice
