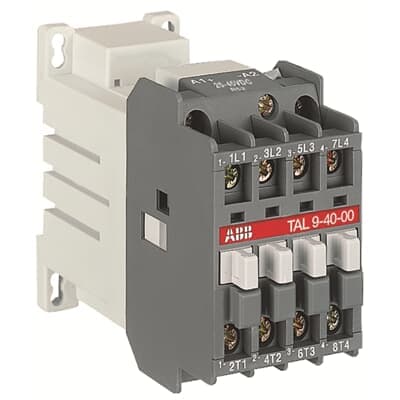

ABB TAL9-22-00 17-32V DC Contactor - High Performance and Reliability

Selling Points

1Wide Coil Voltage Range: 17~32 VDC for versatile applications.
2High Power Handling: Up to 40 HP @ 240V and up to 75 HP @ 480V.
3Compliance and Safety: UL Listed and CSA Approved for enhanced safety.
4Compact Design: 3.07 in x 1.73 in x 3.82 in dimensions for space efficiency.
5Robust Construction: Up to 160 Amps current capacity for reliable operation.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product Net Width	44 mm	Product Net Depth / Length	97 mm
Product Net Height	78 mm	Product Net Weight	0.52 kg
Number of Main Contacts NO	2	Number of Main Contacts NC	2
Number of Auxiliary Contacts NO	0	Number of Auxiliary Contacts NC	0
Rated Operational Voltage	Main Circuit 690 V	Rated Frequency (f)	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)	acc. to IEC 60947-4-1, Open Contactors Î = 40 Â°C 26 A	Rated Operational Current AC-1 (Ie)	(690 V) 40 Â°C 25 A (690 V) 55 Â°C 22 A (690 V) 70 Â°C 18 A
Short-Circuit Protective Devices	gG Type Fuses 25 A	Rated Short-time Withstand Current Low Voltage (Icw)	at 40 Â°C Ambient Temp, in Free Air, from a Cold State 10 s 100 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 15 min 26 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 min 50 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 s 250 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 30 s 60 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A	Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour
Rated Insulation Voltage (Ui)	acc. to IEC 60947-4-1 1000 V acc. to UL/CSA 600 V	Rated Impulse Withstand Voltage (Uimp)	8 kV
Maximum Mechanical Switching Frequency	3600 cycles per hour	Rated Control Circuit Voltage (Uc)	DC Operation 17 ... 32 V
Coil Consumption	Holding DC (Umin / Umax) 2.5 / 8.5 W Pull-in DC (Umin / Umax) 2.5 / 8.5 W	Operate Time	Between Coil De-energization and NC Contact Closing 16 ... 27 ms Between Coil De-energization and NO Contact Opening 10 ... 17 ms Between Coil Energization and NC Contact Opening 20 ... 70 ms Between Coil Energization and NO Contact Closing 50 ... 100 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715	Mounting by Screws (not supplied)	2 x M4 screws placed diagonally
Connecting Capacity Main Circuit	Flexible with Cable End 0.75 ... 2.5 mmÂ² Rigid Cable 1 ... 4 mmÂ²	Connecting Capacity Auxiliary Circuit	Flexible with Cable End 0.75 ... 2.5 mmÂ² Rigid Cable 1 ... 4 mmÂ²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20	Connecting Terminals (delivered in open position) Main Poles	M 3.5 (+,-) pozidriv 2 screw with cable clamp
Terminal Type	Screw Terminals	General Use Rating UL/CSA	(600 V AC) 21 A
Ambient Air Temperature	Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 Â°C Close to Contactor for Storage -60 ... +80 Â°C Near Contactor for Operation in Free Air -40 ... 55 Â°C	Climatic Withstand	acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Operating Altitude Permissible	Without Derating 3000 m	Resistance to Shock acc. to IEC 60068-2-27	Closed, Shock Direction: A 20 g Closed, Shock Direction: B1 15 g Closed, Shock Direction: C1 20 g Closed, Shock Direction: C2 14 g Open, Shock Direction: A 10 g Open, Shock Direction: B1 5 g Open, Shock Direction: C1 8 g Open, Shock Direction: C2 8 g Shock Direction: B2 10 g
Object Classification Code	Q	ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching	ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003	UNSPSC	39121529
Manufacturer ID	1SBL143561R5100

Specifications may be subject to change without notice
