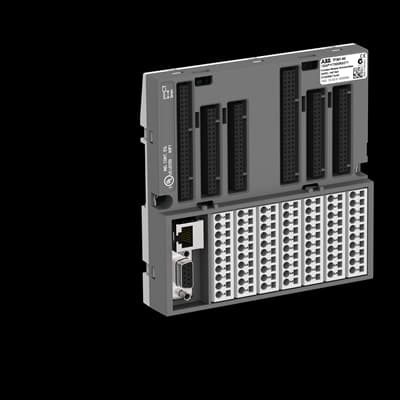

Product Model
TF501-CMS
Selling Points
- 1Condition Monitoring: The TF501-CMS integrates condition monitoring to detect vibrations, current, voltage, and speed/encoder issues.
- 2Ethernet Interface: Equipped with an Ethernet RJ45 connector for seamless communication.
- 3Modular Design: Compatible with FM502-CMS function module and PM592-ETH processor module.
- 4Reliability and Efficiency: Enhances machine efficiency and reliability by minimizing maintenance costs.
- 5Easy Integration: Perfect for stand-alone or integrated CMS solutions with the AC500 platform.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.325 kg | Product Net Depth / Length | 28 mm |
Product Net Height | 135 mm | Product Net Width | 135 mm |
Gross Weight | 0.391 kg | Package Level 1 Depth / Length | 147 mm |
Package Level 1 Height | 40 mm | Package Level 1 Width | 142 mm |
Package Level 1 Units | 1 carton | Function | Without slot for communication module. Ethernet interface |
Input Voltage Type | DC | Degree of Protection | IP20 |
Product Main Type | TF501 | Product Name | Distributed Automation PLCs |
eClass | 27-24-22-92 | ETIM 8 | EC000810 - PLC mounting rack |
UNSPSC | 32151703 | SCIP | 292bd78d-fa5f-41d0-9af8-145c6c3fac42 Germany (DE) |
WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SAP117000R0271 |
Specifications may be subject to change without notice
