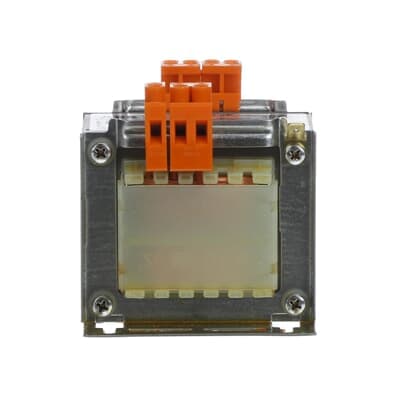

Product Model
TM-C 100/115-230
Selling Points
- 1Robust and Reliable Performance: Built to supply control circuits with high reliability.
- 2Versatile Voltage Range: Compatible with 115-230 V AC power supply.
- 3Compact Design: Dimensions: 86 mm x 87 mm x 0.087 m, making it space-efficient.
- 4Low Power Loss: Only 14 W of power loss, ensuring efficient energy usage.
- 5Compliance with Safety Standards: Meets CE and RoHS compliance for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
Primary Voltage | 230-400 V AC | Secondary Voltage | 115-230 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 15 W |
Power Supply | 100 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 86 mm |
Product Net Height | 87 mm | Product Net Depth / Length | 87 mm |
Product Net Weight | 2 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM236933R0801 |
Specifications may be subject to change without notice
