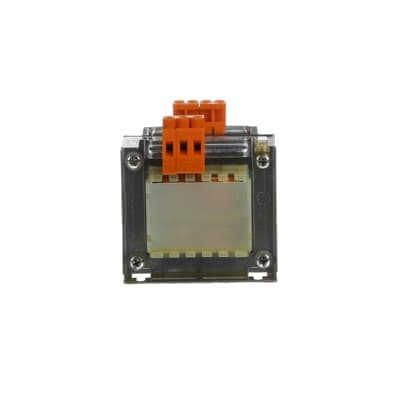

Product Model
TM-C 100/12-24
Selling Points
- 1Efficient Power Supply: Supplies control circuits with 12-24 V AC, ensuring reliable operation.
- 2Compact Design: Measures 86 mm x 87 mm x 0.090 m, perfect for space-constrained applications.
- 3High Power Rating: 100 V·A, suitable for demanding control systems.
- 4Robust Construction: Built with durable materials, ensuring long-lasting performance.
- 5Compliance and Certifications: CE compliant and RoHS compliant, meeting international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
Primary Voltage | 230-400 V AC | Secondary Voltage | 12-24 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 15 W |
Power Supply | 100 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 86 mm |
Product Net Height | 90 mm | Product Net Depth / Length | 87 mm |
Product Net Weight | 1.88 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM207103R0801 |
Specifications may be subject to change without notice
