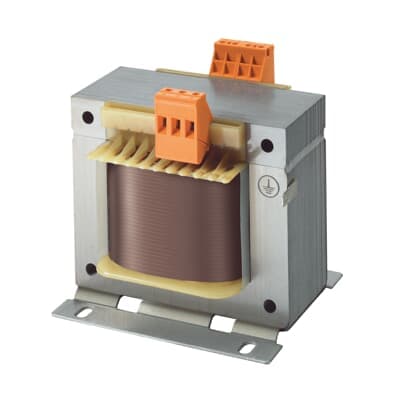

Product Model
TM-C 2500/12-24
Selling Points
- 1High Power Rating: 2500VA primary and 12-24VAC secondary.
- 2Wide Temperature Range: Operates in ambient temperatures up to 40°C.
- 3Certified for Safety: Meets standards EN 61558-2-2, UL506, CSA C22-2-N66.
- 4Compact Design: Dimensions (WxHxD) are 200x191x230 mm.
- 5Global Availability: Worldwide shipping with competitive delivery times.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
Primary Voltage | 230-400 V AC | Secondary Voltage | 12-24 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 100 W |
Power Supply | 2500 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 200 mm |
Product Net Height | 191 mm | Product Net Depth / Length | 230 mm |
Product Net Weight | 26.8 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043290 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM236943R0801 |
Specifications may be subject to change without notice
