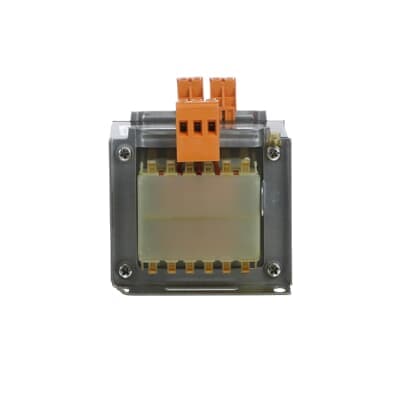

Product Model
TM-C 250/115-230
Selling Points
- 1Converts primary voltage (230-400 V AC) to secondary voltage (115-230 V AC) for precise control circuit applications.
- 2Ensures double or reinforced insulation between circuits, meeting installation rules and end product standards.
- 3Provides SELV or protective extra-low voltage (PELV) to prevent accidental contacts on the secondary circuit.
- 4Operates with a power loss of 38 W, making it energy-efficient for continuous use in control circuits.
- 5Meets international standards including EN 61558-2-2, UL506, and CSA C22-2-N66 for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
Primary Voltage | 230-400 V AC | Secondary Voltage | 115-230 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 38 W |
Power Supply | 250 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 100 mm |
Product Net Height | 105 mm | Product Net Depth / Length | 110 mm |
Product Net Weight | 3.56 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM207153R0801 |
Specifications may be subject to change without notice
