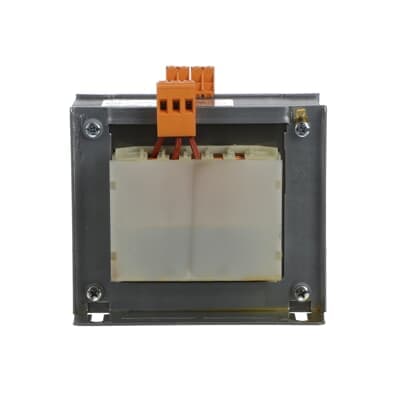

Product Model
TM-C 630/12-24
Selling Points
- 1Provides reliable 12-24 V AC power for control circuits.
- 2Dimensions 154 mm x 126 mm x 165 mm, suitable for DIN rail mounting.
- 345 W output with minimal power loss.
- 4Built with high-quality materials for long-lasting performance.
- 5Meets CE and RoHS standards, ensuring environmental safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
Primary Voltage | 230-400 V AC | Secondary Voltage | 12-24 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 47 W |
Power Supply | 630 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 154 mm |
Product Net Height | 165 mm | Product Net Depth / Length | 126 mm |
Product Net Weight | 8.15 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM236813R0801 |
Specifications may be subject to change without notice
