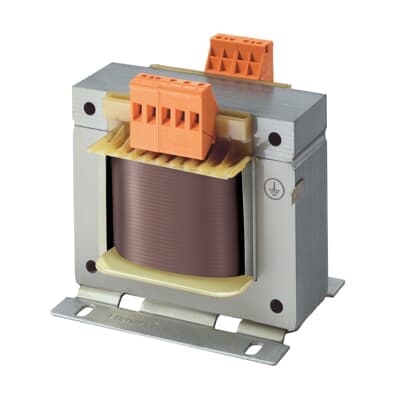

Product Model
TM-I 2000/115-230 P
Selling Points
- 1Meets CEI EN 61558-2-2 and CEI EN 61558-2-4 standards for safety and isolation.
- 2Primary supply with 230-400 VAC for versatile voltage handling.
- 3Separate terminals with ±15V for precise control of input voltage.
- 4Built as an isolating transformer with double or reinforced insulation.
- 5Suitable for mounting on top-hat rails up to 160 VA with additional mounting bracket for DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2, EN 61558-2-4 , UL 506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 115-230 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 85 W |
Power Supply | 2000 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 200 mm |
Product Net Height | 181 mm | Product Net Depth / Length | 230 mm |
Product Net Weight | 25.5 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043290 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM204383R0801 |
Specifications may be subject to change without notice
