Product Model

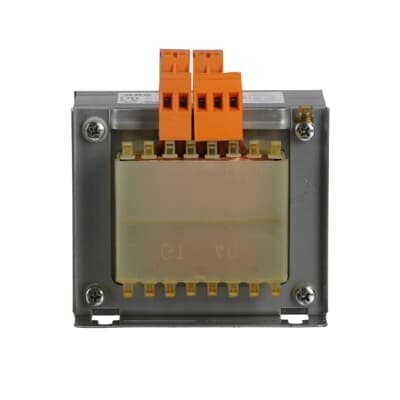

TM-I 400/115-230 P
Selling Points
- 1Double Insulation: Electrically separated primary and secondary windings for enhanced safety.
- 2Precise Voltage Regulation: Separate clamps with ±15V for precise input voltage control.
- 3Compliance with Standards: Meets CEI EN 61558-2-2 and CEI EN 61558-2-4 standards.
- 4Continuous Operation: Designed for continuous operation in various mounting configurations.
- 5Versatile Mounting Options: Compatible with top-hat rails up to 160 VA and additional mounting brackets for DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2, EN 61558-2-4 , UL 506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 115-230 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 41 W |
Power Supply | 400 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 123 mm |
Product Net Height | 104 mm | Product Net Depth / Length | 112 mm |
Product Net Weight | 5.5 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM201073R0801 |
Specifications may be subject to change without notice
