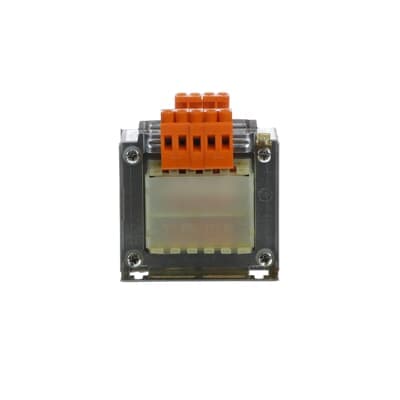

Product Model
TM-S 100/12-24 P
Selling Points
- 1Built as a safety transformer to prevent accidental contact with secondary winding phases.
- 2Dimensions: 200 mm width, 96 mm height, 87 mm depth, making it easy to integrate into various systems.
- 3Manufactured by ABB, a trusted brand in electrical engineering, ensuring high-quality performance.
- 4Suitable for supplying safety extra low voltage circuits (<50 V on no load), ideal for various industrial and commercial applications.
- 5Meets IEC/EN 60947-3 standards, ensuring compliance with international safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 12-24 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 15 W |
Power Supply | 100 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 200 mm |
Product Net Height | 87 mm | Product Net Depth / Length | 87 mm |
Product Net Weight | 2 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM207163R0801 |
Specifications may be subject to change without notice
