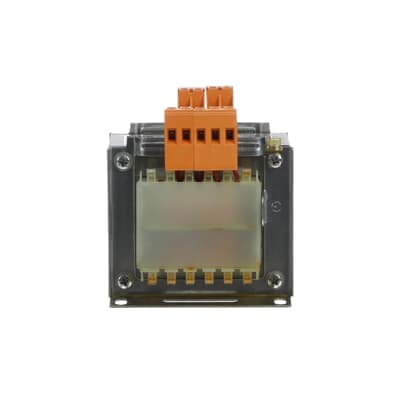

Product Model
TM-S 200/12-24 P
Selling Points
- 1Primary supply with 230-400 VAC and separate terminals with ±15V for precise control of the input voltage.
- 2Meets CEI EN 61558-2-2 and CEI EN 61558-2-6 standards for safety in extra low voltage circuits.
- 3Used continuously and attached to mounting plates, suitable for continuous operation.
- 4Can be mounted on top-hat rails up to 160 VA with an additional mounting bracket for DIN rails (TM-C-DIN).
- 5Constructed with copper conductor material for reliability and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 12-24 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 21 W |
Power Supply | 200 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 100 mm |
Product Net Height | 89 mm | Product Net Depth / Length | 90 mm |
Product Net Weight | 3.2 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM260043R0801 |
Specifications may be subject to change without notice
