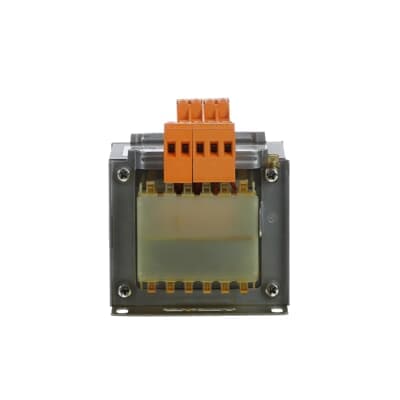

Product Model
TM-S 250/12-24 P
Selling Points
- 1Reliable Voltage Regulation: Ensures precise voltage control with a primary voltage range of 230-400V and secondary voltage of 12-24V AC.
- 2Enhanced Safety Features: Designed with reinforced insulation to withstand accidental contact without danger, ensuring safe operation.
- 3Compliance with Strict Standards: Meets international standards including EN 61558-2-2, UL506, and CSA C22-2-N66 for reliability and safety.
- 4Efficient Power Supply: Offers a power supply of 250VA with a power loss of 38W, making it efficient for various industrial applications.
- 5Compact Design: Weighs 3.6 kg and has dimensions of 100 mm x 110 mm x 3.6 kg, making it easy to install in compact spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 12-24 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 38 W |
Power Supply | 250 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 100 mm |
Product Net Height | 105 mm | Product Net Depth / Length | 110 mm |
Product Net Weight | 3.6 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM260113R0801 |
Specifications may be subject to change without notice
