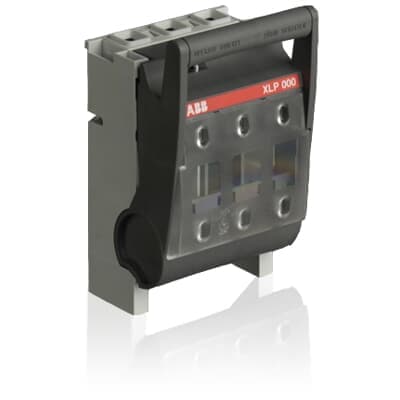

Product Model
XLP000-6CC in carton
Selling Points
- 1Meets IEC60947-3 standards for reliable operation.
- 2Quick-make operation device for effortless setup.
- 3Integrated IP20 cable termination and IP30 degree of protection.
- 4Replacement compatible with similar types in the market.
- 5Compact, add-on Electronic Fuse Monitoring (EFM) for enhanced safety features.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 95 mm |
Product Net Height | 160 mm | Product Net Depth / Length | 82 mm |
Product Net Weight | 0.49 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH000 NH00C | Fuse System | DIN |
Handle Type | Front cover 3P | Mounting Type | Baseplate |
Number of Poles | 3 | Power Loss | at Rated Load 1.4 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 100 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 50 A | Rated Operational Current AC-22B (Ie) | (500 V) 100 A |
Rated Operational Current AC-23B (Ie) | (400V) 80 A | Rated Operational Voltage | 400 V AC 500 V AC 690 V AC |
Rated Voltage (Ur) | 400 V AC 500 V AC 690 V AC | Special Functions | Not Included |
Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP201428R0002 |
Specifications may be subject to change without notice
