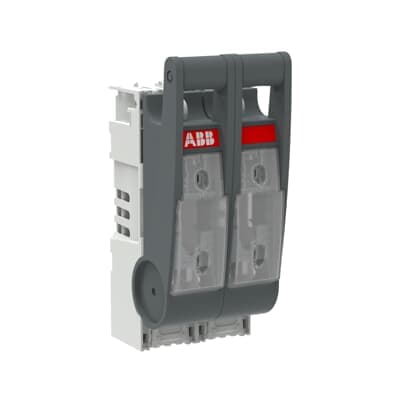

ABB XLP00-2P Fuse Switch Disconnector: Reliable Electrical Solutions

Selling Points

1The XLP00-2P features a compact design, ideal for NH 00 compact fuses up to 100 A.
2Ensures consistent performance under various operational conditions, providing a reliable solution for your electrical needs.
3Offers robust protection with a rated impulse withstand voltage of 8 kV and a conditional short-circuit current of 50 kA.
4Includes integrated cable clamps for 1.5 - 35 mm² cables and snap-on DIN rail mounting for easy installation.
5Suitable for UPS, telecom power supplies, and general protection in smaller distribution panels using AC or DC configurations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Degree of Protection	IP30	Product Net Width	80 mm
Product Net Height	88 mm	Product Net Depth / Length	185 mm
Product Net Weight	0.53 kg	Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector	Electronic Fuse Monitoring	No
Fuse Size	NH00 NH000	Fuse System	DIN
Handle Type	Front cover 2P	Mounting Type	Baseplate
Number of Poles	2P	Power Loss	at Rated Load 3.5 W
Rated Conditional Short-Circuit Current (Inc)	(690 V) 50 kiloampere rms	Rated Current (In)	160 A
Rated Frequency (f)	Main Circuit 50/60 Hz	Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Operational Current AC-21B (Ie)	(690 V) 125 A	Rated Operational Current AC-22B (Ie)	(500 V) 160 A
Rated Operational Current DC-22B	(220 V) 160 A	Rated Operational Voltage	220 V DC 500 V AC 690 V AC
Rated Voltage (Ur)	220 V DC 500 V AC 690 V AC	Special Functions	Not Included
Standards	IEC60947-3 GB/T14048.3	Terminal Type	Lug terminals
Object Classification Code	S	ETIM 8	EC001040 - Fuse switch disconnector
ETIM 9	EC001040 - Fuse switch disconnector	eClass	V11.1 : 27371401
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)	Manufacturer ID	1SEP600114R0001

Specifications may be subject to change without notice
