Product Model

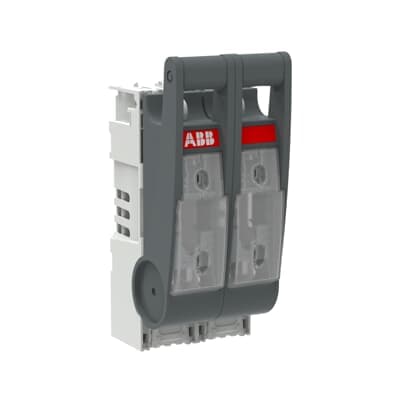

XLP00-2P-4M8
Selling Points
- 1High current rating: 160 A
- 2Includes 4x M8 x 16 bolts for secure mounting
- 3IP30 degree of protection from the front
- 4Compact and easy to install
- 5Suitable for various industrial applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 80 mm |
Product Net Height | 88 mm | Product Net Depth / Length | 185 mm |
Product Net Weight | 0.57 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH00 NH000 | Fuse System | DIN |
Handle Type | Front cover 2P | Mounting Type | Baseplate |
Number of Poles | 2P | Power Loss | at Rated Load 3.5 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 160 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 125 A | Rated Operational Current AC-22B (Ie) | (500 V) 160 A |
Rated Operational Current DC-22B | (220 V) 160 A | Rated Operational Voltage | 220 V DC 500 V AC 690 V AC |
Rated Voltage (Ur) | 220 V DC 500 V AC 690 V AC | Special Functions | Not Included |
Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Bolt |
Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP600114R0003 |
Specifications may be subject to change without notice
