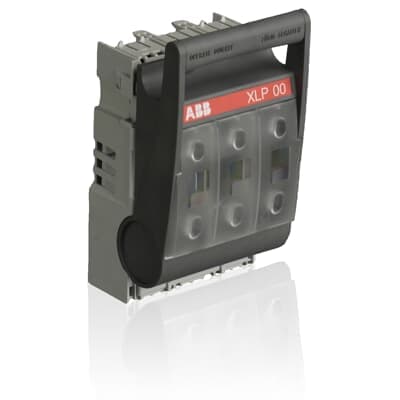

Product Model
XLP00-6M8
Selling Points
- 1High current rating of 160A for efficient power management.
- 2Includes 6 x M8x16mm bolts for secure mounting.
- 3Advanced electronic fuse monitoring (EFM) for real-time tracking.
- 4Compact dimensions: 105 mm x 187 mm x 90 mm for space-saving installations.
- 5IP20 protection rating for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 105 mm |
Product Net Height | 187 mm | Product Net Depth / Length | 90 mm |
Product Net Weight | 0.63 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH00 NH000 | Fuse System | DIN |
Handle Type | Fuse holder 3P | Mounting Type | Baseplate |
Number of Poles | 3 | Power Loss | at Rated Load 3.5 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 160 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 125 A | Rated Operational Current AC-22B (Ie) | (500 V) 160 A (800 V) 63 A (1000 V) 125 A |
Rated Operational Current AC-23B (Ie) | (400V) 125 A | Rated Operational Voltage | 400 V AC 500 V AC 690 V AC 800 V AC 1000 V AC |
Rated Voltage (Ur) | 400 V AC 500 V AC 690 V AC 800 V AC 1000 V AC | Special Functions | Not Included |
Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP101890R1004 |
Specifications may be subject to change without notice
