ABBFuse type isolating switch
Product Model

XLP00-A60/60-B-below

Manufacturer

ABB

Category

Fuse type isolating switch

Product ID

75320

In Stock
Last updated: 2025/4/18
View Specifications

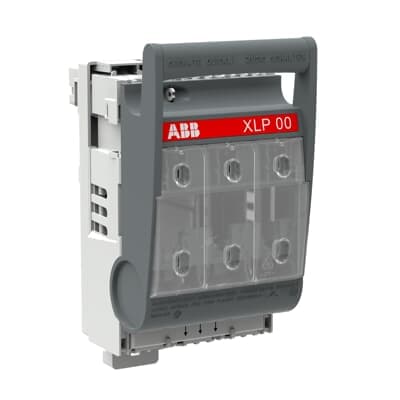

ABB XLP00-A60/60-B-below

Selling Points

  • 1The XLP00-A60/60-B-below offers a versatile 3-pole configuration suitable for various electrical applications.
  • 2With a rated current of 160A, this fuse switch disconnector can handle high current demands efficiently.
  • 3Ensuring a high level of safety, the device features an IP30 protection rating, safeguarding against environmental factors.
  • 4The product includes an A60/60 adapter, enhancing its compatibility with different electrical systems.
  • 5Equipped with a robust cable clamp system, it provides secure and reliable connections for cables below.
Product Details
XLP00-A60/60-B-below
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
IP30
Product Net Width
105 mm
Product Net Height
206 mm
Product Net Depth / Length
126 mm
Product Net Weight
0.95 kg
Degree of Protection
IP30
Device Type Manager (DTM)
Fuseswitchdisconnector
Electronic Fuse Monitoring
No
Fuse Size
NH00 NH000
Fuse System
DIN
Handle Type
Front cover 3P
Mounting Type
60mm Busbar System
Number of Poles
3
Power Loss
at Rated Load 3.5 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 50 kiloampere rms
Rated Current (In)
160 A
Rated Frequency (f)
Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Rated Operational Current AC-21B (Ie)
(690 V) 125 A
Rated Operational Current AC-22B (Ie)
(500 V) 160 A (800 V) 63 A (1000 V) 125 A
Rated Operational Current AC-23B (Ie)
(400V) 125 A
Rated Operational Voltage
400 V AC 500 V AC 690 V AC 800 V AC 1000 V AC
Rated Voltage (Ur)
400 V AC 500 V AC 690 V AC 800 V AC 1000 V AC
Special Functions
Not Included
Standards
IEC60947-3 GB/T14048.3
Terminal Type
Lug terminals
Object Classification Code
S
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601032
Manufacturer ID
1SEP101916R0002

Specifications may be subject to change without notice
