Product Model

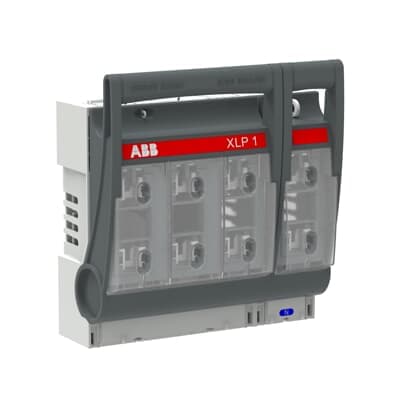

XLP1-4P
Selling Points
- 1High short-circuit current protection up to 50 kA.
- 2Compact design with integrated IP20 cable termination.
- 3Easy installation and operation with modern design.
- 4Sturdy construction for high personal safety.
- 5Compatible with various cable terminals and snap-on accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 254 mm |
Product Net Height | 117 mm | Product Net Depth / Length | 269 mm |
Product Net Weight | 2.5 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH1 | Fuse System | DIN |
Handle Type | Front cover 4P | Mounting Type | Baseplate |
Number of Poles | 4P | Power Loss | at Rated Load 7.5 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-22B (Ie) | (500 V) 250 A | Rated Operational Voltage | 500 V AC |
Rated Voltage (Ur) | 500 V AC | Special Functions | Not Included |
Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP600119R0001 |
Specifications may be subject to change without notice
