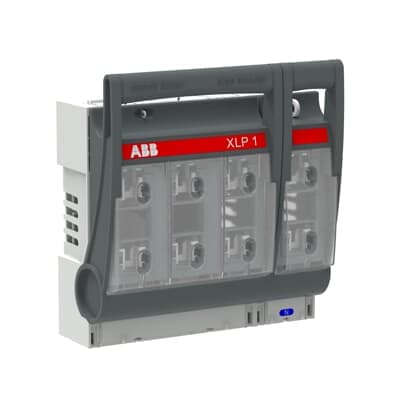

ABB XLP1-4P-8M10 Fuse Switch Disconnector - High-Quality Electrical Solution

Selling Points

1High-Quality Electrical Solution: The ABB XLP1-4P-8M10 is a premium fuse switch disconnector, ensuring reliable and efficient electrical operations.
24-Pole Configuration: Designed for 4-pole power supply networks with switching neutral, this product offers comprehensive protection.
3250A Rated Current: Handles a maximum rated current of 250A, making it suitable for various industrial applications.
4M10 Bolts Included: Comes with 8 x M10 x 20 bolts for easy cable connections, enhancing installation efficiency.
5Compact and Sturdy Design: Features a compact, add-on Electronic Fuse Monitoring (EFM) system and a sturdy design for safe operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Degree of Protection	IP30	Product Net Width	254 mm
Product Net Height	117 mm	Product Net Depth / Length	269 mm
Product Net Weight	2.74 kg	Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector	Electronic Fuse Monitoring	No
Fuse Size	NH1	Fuse System	DIN
Handle Type	Front cover 4P	Mounting Type	Baseplate
Number of Poles	4P	Power Loss	at Rated Load 7.5 W
Rated Conditional Short-Circuit Current (Inc)	(690 V) 50 kiloampere rms	Rated Current (In)	250 A
Rated Frequency (f)	Main Circuit 50/60 Hz	Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Operational Current AC-22B (Ie)	(500 V) 250 A	Rated Operational Voltage	500 V AC
Rated Voltage (Ur)	500 V AC	Special Functions	Not Included
Standards	IEC60947-3 GB/T14048.3	Terminal Type	Bolt
Object Classification Code	S	ETIM 8	EC001040 - Fuse switch disconnector
ETIM 9	EC001040 - Fuse switch disconnector	eClass	V11.1 : 27371401
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)	E-Number (Sweden)	3171972
Manufacturer ID	1SEP600119R0003

Specifications may be subject to change without notice
