Product Model

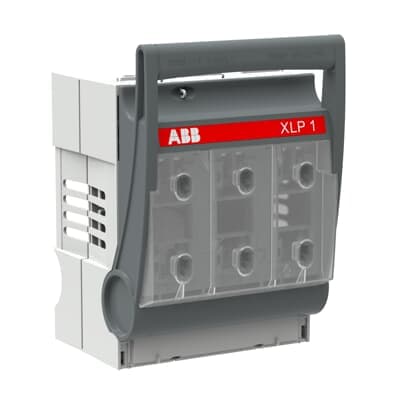

XLP1-A40/120-A-3BC-above
Selling Points
- 1Highly Rated Current Capacity: 250A rated current for reliable operation.
- 2Easy Installation: Includes A40/120 adapter and 3 Bridge Clamps for straightforward setup.
- 3Compact Design: Dimensions: 185 mm x 270 mm x 196 mm, ideal for space-constrained applications.
- 4Enhanced Safety Features: Meets IEC 60947-1 standards, ensuring high dielectric properties and short-circuit protection.
- 5Versatile Connectivity Options: Compatible with a wide range of cable terminals and Snap-On accessories for flexible wiring configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 185 mm |
Product Net Height | 270 mm | Product Net Depth / Length | 196 mm |
Product Net Weight | 2.8 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH1 | Fuse System | DIN |
Fuse Type | NH | Handle Type | Front cover 3P |
Mounting Type | 40mm Busbar System | Number of Poles | 3 |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A |
Rated Operational Voltage | 500 V AC 690 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC |
Special Functions | Not Included | Standards | IEC60947-3 |
Terminal Type | Cable Clamp | Object Classification Code | S |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SEP101912R0002 |
Specifications may be subject to change without notice
