Product Model

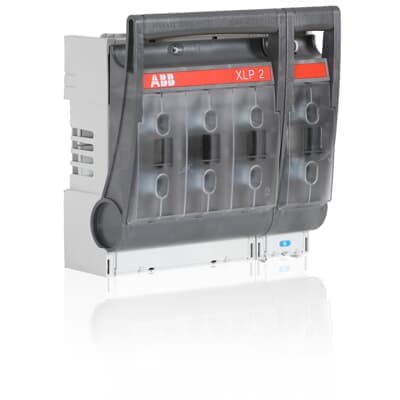

XLP2-4P-8BC
Selling Points
- 1Designed for reliable operation in electrical systems.
- 2Meets EU Directive 2011/65/EU and Amendment 2015/863 for environmental safety.
- 3Compact dimensions (290 mm x 129 mm x 289 mm) for easy installation.
- 4Suitable for general fuse protection in power supply networks with switching neutral.
- 5Built with V-0 plastic materials for long-lasting durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 290 mm |
Product Net Height | 129 mm | Product Net Depth / Length | 289 mm |
Product Net Weight | 4.56 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH2 | Fuse System | DIN |
Handle Type | Front cover 4P | Mounting Type | Baseplate |
Number of Poles | 4P | Power Loss | at Rated Load 13 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-22B (Ie) | (500 V) 400 A | Rated Operational Voltage | 500 V AC |
Rated Voltage (Ur) | 500 V AC | Special Functions | Not Included |
Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Norway) | 1687823 |
E-Number (Sweden) | 3171973 | Manufacturer ID | 1SEP600124R0002 |
Specifications may be subject to change without notice
