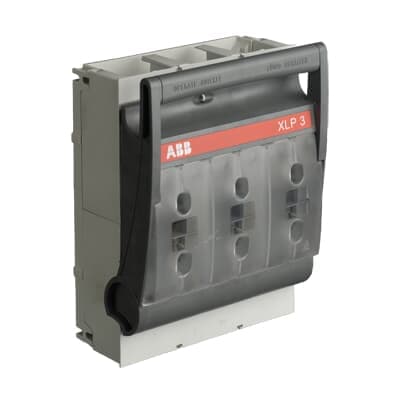

ABB XLP3 Fuse Switch Disconnector - Reliable Power Management

Selling Points

1High Current Rating: Handles up to 630A of current, ensuring smooth operation in demanding conditions.
2Compact Design: Easy to install and space-saving, suitable for various electrical panels.
3Enhanced Safety: Meets high safety standards with IP30 protection from the front and IP20 in open position.
4Robust Construction: Built with durable materials like unsaturated polyester and polyamide for long-lasting performance.
5Versatile Applications: Suitable for industrial automation systems, electrical distribution panels, and mechanical engineering applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Degree of Protection	IP30	Product Net Width	250 mm
Product Net Height	330 mm	Product Net Depth / Length	142 mm
Product Net Weight	4.04 kg	Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector	Electronic Fuse Monitoring	No
Fuse Size	NH3	Fuse System	DIN
Handle Type	Front cover 3P	Mounting Type	Baseplate
Number of Poles	3P	Power Loss	at Rated Load 24 W
Rated Conditional Short-Circuit Current (Inc)	(690 V) 50 kiloampere rms	Rated Current (In)	630 A
Rated Frequency (f)	Main Circuit 50/60 Hz	Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Operational Current AC-21B (Ie)	(690 V) 500 A	Rated Operational Current AC-22B (Ie)	(500 V) 630 A
Rated Operational Voltage	500 V AC 690 V AC	Rated Voltage (Ur)	500 V AC 690 V AC
Special Functions	Not Included	Standards	IEC60947-3 GB/T14048.3
Terminal Type	Lug terminals	Object Classification Code	S
ETIM 8	EC001040 - Fuse switch disconnector	ETIM 9	EC001040 - Fuse switch disconnector
eClass	V11.1 : 27371401	WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)	3171958	Manufacturer ID	1SEP101975R0001
