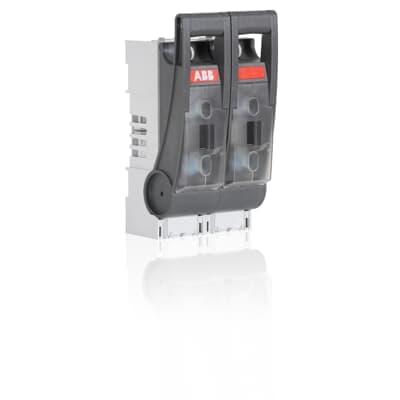

Product Model
XLP3-2P-4BC
Selling Points
- 1High-rated current: 630A for reliable power management.
- 2Integrated bridge clamps: Simplify direct cable connections.
- 3Sturdy design: Ensures safe and durable operation.
- 4IP30 protection: Front protection against environmental factors.
- 5Easy installation: Wide range of cable terminals and snap-on accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 179 mm |
Product Net Height | 142 mm | Product Net Depth / Length | 330 mm |
Product Net Weight | 4.3 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH3 | Fuse System | DIN |
Handle Type | Front cover 2P | Mounting Type | Baseplate |
Number of Poles | 2P | Power Loss | at Rated Load 24 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 630 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 500 A | Rated Operational Current AC-22B (Ie) | (500 V) 630 A |
Rated Operational Current DC-22B | (440 V) 630 A | Rated Operational Voltage | 440 V DC 500 V AC 690 V AC |
Rated Voltage (Ur) | 440 V DC 500 V AC 690 V AC | Special Functions | Not Included |
Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Norway) | 1687827 |
E-Number (Sweden) | 3171968 | Manufacturer ID | 1SEP600127R0002 |
Specifications may be subject to change without notice
