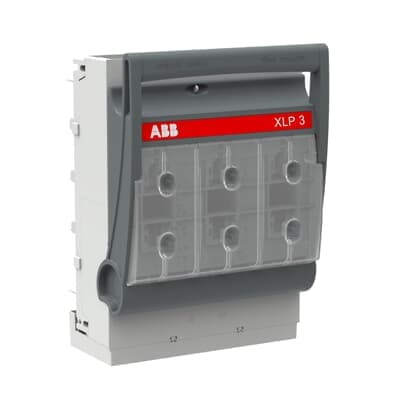

ABB XLP3-A60/120-A-above Fuse Switch Disconnector

Selling Points

1High-Rated Current Capability: Handles 630A with ease, ensuring reliable operation in demanding electrical systems.
2Compact Design: Measuring 250 mm x 330 mm x 210 mm, it fits seamlessly into various electrical setups.
3Easy Installation: Includes an A60/120 adapter and cable above, simplifying the installation process without clamps or bolts.
4Enhanced Safety Features: Features IP30 degree of protection from the front, ensuring safe operation in various environments.
5Comprehensive Certifications: Meets international standards including IEC 60529 and fulfills BGV A2 requirements for added assurance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Degree of Protection	IP30	Product Net Width	250 mm
Product Net Height	330 mm	Product Net Depth / Length	210 mm
Product Net Weight	6.3 kg	Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector	Electronic Fuse Monitoring	No
Fuse Size	NH3	Fuse System	DIN
Handle Type	Front cover 3P	Mounting Type	60mm Busbar System
Number of Poles	3P	Power Loss	at Rated Load 24 W
Rated Conditional Short-Circuit Current (Inc)	(690 V) 50 kiloampere rms	Rated Current (In)	630 A
Rated Frequency (f)	Main Circuit 50/60 Hz	Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Operational Current AC-21B (Ie)	(690 V) 500 A	Rated Operational Current AC-22B (Ie)	(500 V) 630 A
Rated Operational Voltage	500 V AC 690 V AC	Rated Voltage (Ur)	500 V AC 690 V AC
Special Functions	Not Included	Standards	IEC60947-3 GB/T14048.3
Terminal Type	Lug terminals	Object Classification Code	S
ETIM 8	EC001040 - Fuse switch disconnector	ETIM 9	EC001040 - Fuse switch disconnector
eClass	V11.1 : 27371401	WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3601085	Manufacturer ID	1SEP102287R0001

Specifications may be subject to change without notice
