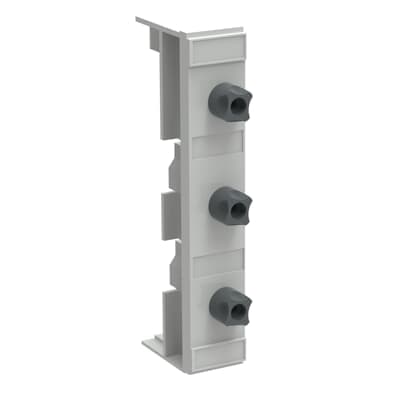

Product Model
XLPD0-FB-E18/36-3P
Selling Points
- 1Meets stringent IEC60947-3 standards for isolation, performance, and safety.
- 2Fast and tool-free installation on 60mm Busbar System.
- 3Includes shock protection and comprehensive safety features.
- 4Suitable for Neozed (D02) and D01 bus-mounting fuse bases.
- 5Optional Electronic Fuse Monitoring (EFM) for remote signal/alarm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 36 mm | Product Net Height | 35 mm |
Product Net Depth / Length | 200 mm | Product Net Weight | 0.2 kg |
Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
Fuse Size | D02 | Fuse System | Neozed |
Mounting Type | 60mm Busbar System | Number of Poles | 3P |
Power Loss | at Rated Load 5.9 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
Rated Current (In) | 63 A | Rated Frequency (f) | Main Circuit 50 Hz |
Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV | Rated Operational Voltage | 400 V AC |
Rated Voltage (Ur) | 400 V AC | Special Functions | Not Included |
Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
Utilization Category | Connecting and disconnecting under no-load conditions (AC-20) | Object Classification Code | X |
ETIM 8 | EC001644 - D0-system fuse base | ETIM 9 | EC001644 - D0-system fuse base |
eClass | V11.1 : 27142120 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SEP622351R0001 |
Specifications may be subject to change without notice
