Product Model

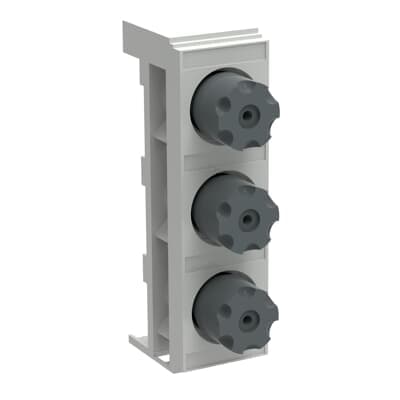

XLPD0-FB-E33/57-3P
Selling Points
- 1Robust Protection: Designed to withstand high currents and voltages, ensuring reliable operation in demanding electrical systems.
- 2Efficient Operation: Compatible with 60mm busbar systems, facilitating easy installation and minimizing downtime.
- 3High Current Capacity: Rated for 63A, making it suitable for applications requiring significant power handling.
- 4Comprehensive Safety Features: Includes a comprehensive surge protection system, including a strip cover, for enhanced safety.
- 5Easy Installation: Tool-free mounting on busbar systems simplifies setup and reduces installation time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 57 mm | Product Net Height | 43 mm |
Product Net Depth / Length | 200 mm | Product Net Weight | 0.4 kg |
Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
Fuse Size | DIII | Fuse System | Diazed |
Mounting Type | 60mm Busbar System | Number of Poles | 3P |
Power Loss | at Rated Load 10 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
Rated Current (In) | 63 A | Rated Frequency (f) | Main Circuit 50 Hz |
Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV | Rated Operational Voltage | 500 V AC |
Rated Voltage (Ur) | 500 V AC | Special Functions | Not Included |
Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
Utilization Category | Connecting and disconnecting under no-load conditions (AC-20) | Object Classification Code | X |
ETIM 8 | EC000094 - D-system fuse base | ETIM 9 | EC000094 - D-system fuse base |
eClass | V11.1 : 27142103 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SEP622345R0001 |
Specifications may be subject to change without notice
