ABBFuse type isolating switch
Product Model

XLPD0-FS-1038-3P

Manufacturer

ABB

Category

Fuse type isolating switch

Product ID

85263

In Stock
Last updated: 2025/4/19
View Specifications

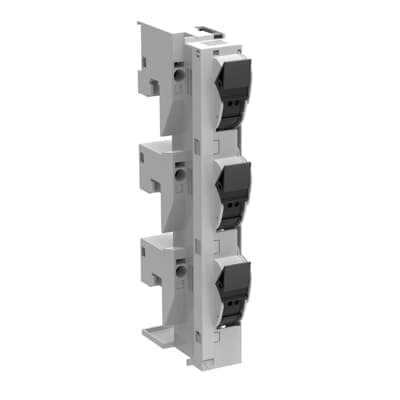

ABB XLPD0-FS-1038-3P

Selling Points

  • 1The ABB Load Break Switch XLPD0-FS-1038-3P ensures secure and reliable electrical connections in industrial settings.
  • 2Equipped to handle up to 690V, making it suitable for demanding electrical applications.
  • 3Designed with a 3-pole configuration for versatile use in various electrical systems.
  • 4Features a cylindrical design for easy installation and space efficiency.
  • 5Manufactured by ABB, a renowned brand in the electrical industry, ensuring high-quality performance and durability.
Product Details
XLPD0-FS-1038-3P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
27 mm
Product Net Height
104 mm
Product Net Depth / Length
200 mm
Product Net Weight
0.2 kg
Device Type Manager (DTM)
Fusebase
Electronic Fuse Monitoring
No
Fuse Size
10x38
Fuse System
NFC
Handle Type
Fuse holder 3P
Mounting Type
60mm Busbar System
Number of Poles
3P
Power Loss
at Rated Load 1 W
Rated Conditional Short-Circuit Current (Inc)
(690 V) 50 kiloampere rms
Rated Current (In)
32 A
Rated Frequency (f)
Main Circuit 50 Hz
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 6 kV
Rated Operational Current AC-21B (Ie)
(500 V) 32 A (690 V) 32 A
Rated Operational Voltage
500 V AC 690 V AC
Rated Voltage (Ur)
500 V AC 690 V AC
Special Functions
Not Included
Standards
IEC60947-3
Terminal Type
Main Circuit: Bars
Object Classification Code
X
ETIM 8
EC002705 - Holder for cylindrical fuse
ETIM 9
EC002705 - Holder for cylindrical fuse
eClass
V11.1 : 27142121
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SEP622346R0001

Specifications may be subject to change without notice
